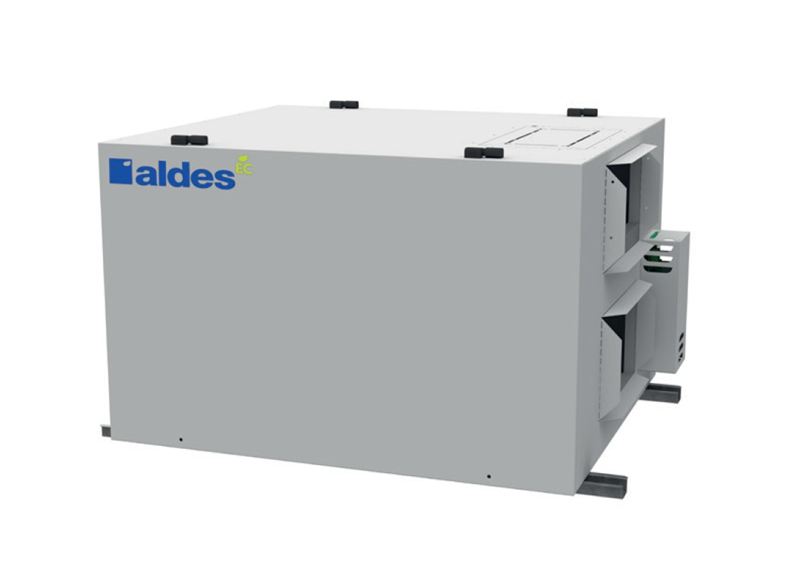

The E400L-Fi-N energy recovery ventilator provides up to 395 cubic feet per minute (186 L/s) of fresh outdoor air while exhausting an equivalent amount of stale indoor air, creating a well-balanced ventilation system. The E400LFi- N makes use of Aldes’ AHRI Certified core that deliver superior moisture transfer and can be used in any climate zone.

The E400L-Fi-N is recommended for smaller nonresidential spaces or dedicated zones within larger buildings such as classrooms, common areas of residential complexes and indoor parking garages.

Designed for versatile indoor installation, Aldes light commercial ventilators can fit almost anywhere and still provide easy access to the internal components for quick maintenance. The units also offer a choice of five continuous operation speeds and a demand-controlled high speed exchange mode.

Unit of Measure

Specifications

Type

 N/A Energy Recovery Ventilator

Defrost Mode

 N/A Exhaust / Fan

Airflow

 N/A 395 CFM

Voltage

 N/A 120 V

Number of Phases

 N/A 1

Frequency

 N/A 60 Hz

Plate Exchanger Material

 N/A High latent transfer (HLT)

Casing Material

 N/A Painted Galvanized Steel 22GA

Casing Insulation

 N/A 1" (25 mm) Fiberglass with FSK

Drain Connection

 N/A 1/2 in

Duct Connections

 N/A 8 x 10 in

Mounting

 N/A Supplied with base rails. Support rods not included.

Full Load Amps

 N/A 2.73 A

Minimum Circuit Amps

 N/A 3 A

Maximum Overcurrent Protection

 N/A 15 A

Power Rating

 N/A 349 W

Current

 N/A 2.73 A

Blowers

 N/A Two backward-inclined motorized impeller, direct-drive PSC, variable speed, external rotor

Filter Type

 N/A Aluminum

Warranty

 N/A 2 Year - Other Parts 5 Year - Core

Weight

 N/A 103 lb

Shipping Weight

 N/A 156 lb

Dimensions

Width

 N/A 30-1/2 in

Height

 N/A 21-3/16 in

Depth

 N/A 23 in

Features

N/A

  • Electronically and independently adjustable supply and exhaust blowers (FlexControl)
  • Painted, heavy-gauge galvanized steel cabinets are attractive, rustresistant and extremely durable.
  • Doors on both sides of the unit to allow easy access to filters, cores and motors, no matter the installation constraints.
  • Fan exhaust frost protection, or optional recirculation defrost kit (factory installed or upgraded in the field).
  • Durable High Latent Transfer enthalpy core has exceptional moisture transfer for increased comfort.
